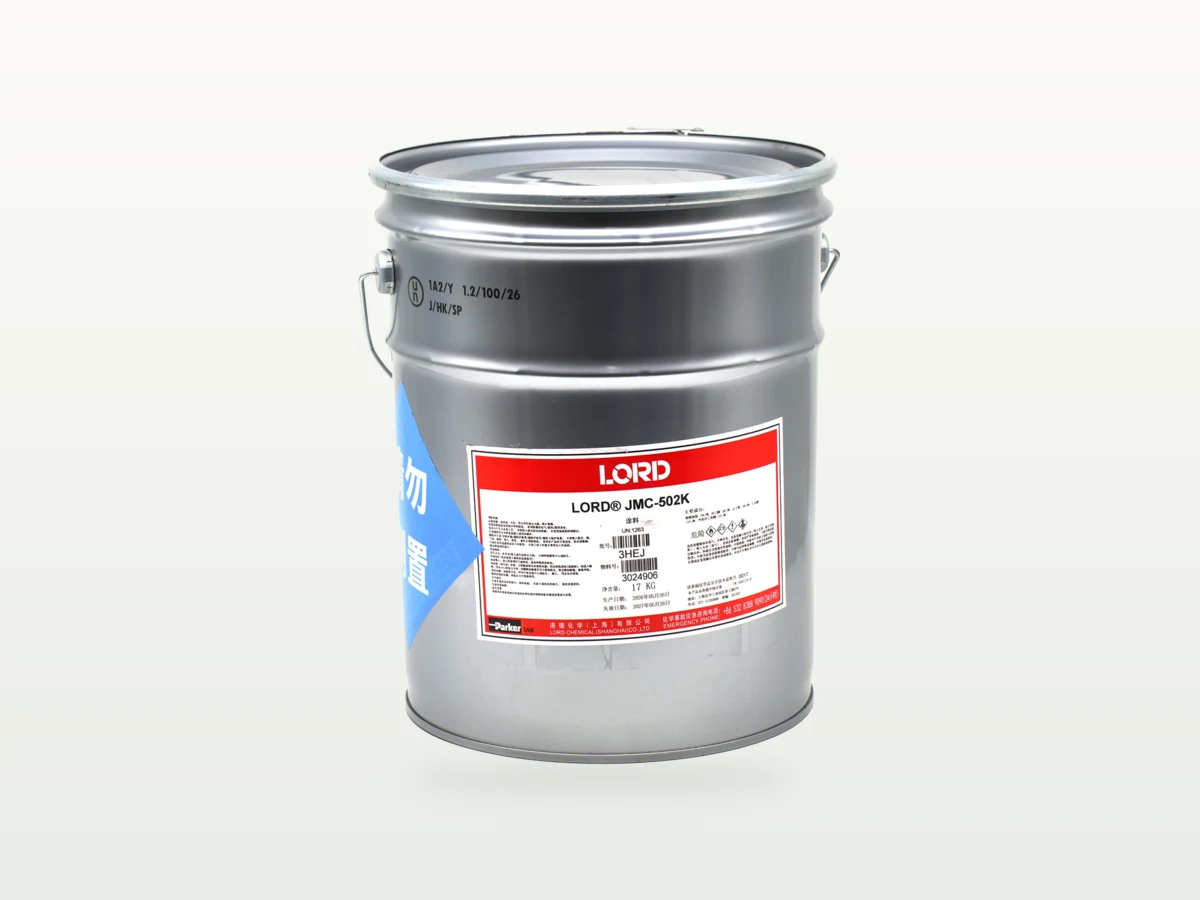

LORD JMC-502K Phenolic Magnet Coating
Phenolic coating for magnet protection, including neodymium-iron-boron magnets used in direct-drive permanent-magnet wind generators.
Request pricing, technical documents, or application guidance.
Product overview
LORD JMC-502K is a phenolic magnet coating supplied as a black liquid. Its application is surface protection of neodymium-iron-boron (NdFeB) magnets, including magnets used in direct-drive permanent-magnet wind generators.
Application considerations
Magnet-coating selection needs to account for the magnet substrate, corrosion exposure and assembly process. JMC-502K is a distinct grade; application instructions for other JMC coatings should not be assumed to apply to it.
Typical uncured properties
| Property | Value |
|---|---|
| Appearance | Black liquid |
| Solids by weight | 33–37% |
| Viscosity at 25°C | 200–1000 mPa·s |
| Specific gravity | 1.00–1.05 |
Typical values are for reference, not product specifications. The viscosity value has no specified test method.
Coating performance
The coating combines corrosion and heat resistance with adhesion to the magnet substrate and structural adhesive. Its insulating film is relevant to magnet assemblies where electrical insulation is required.
Establish the coating process and required acceptance tests for the actual magnet assembly.
Technical enquiries
Hongtu Chemical supplies LORD JMC-502K as an authorized distributor. Contact our team to discuss your materials and process.
Contact
Enquire about LORD JMC-502K
Tell us about your materials, process or purchasing requirements. We can discuss this product’s application, pricing, supply and available technical documents.
